The success of lithium-ion batteries heavily depends on the cathode material, which determines the capacity, stability, and safety of the battery. Among the various cathode materials, Nickel Manganese Cobalt (NMC) oxides have emerged as a frontrunner, attributed to their balanced properties. The development of NMC is guided by a scientific compass known as the 'Ternary phase diagram', a graphical representation that plays a pivotal role in material synthesis and optimization.

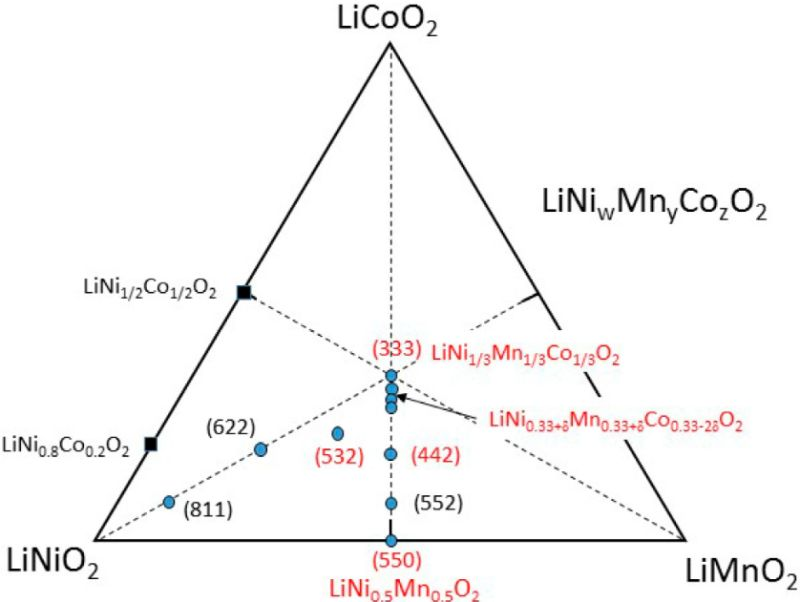

The ternary phase diagram is like a map, plotting the composition of various materials used in lithium-ion batteries across a triangular grid. The vertices of the triangle represent the pure forms of lithium cobalt oxide, lithium nickel oxide, and lithium manganese oxide. These materials are the building blocks of NMC chemistry, each contributing distinct characteristics to the final product. Cobalt provides high energy density, nickel ensures capacity, and manganese offers thermal stability and safety.
The interior of the triangle is where the real combination of materials unfolds. Points within this space represent an alloy of the three oxides, with their positions indicating the relative proportions of each. For instance, a point closer to the lithium-cobalt oxide corner would denote a higher percentage of cobalt in the mix. The diagram is not merely a static image but a dynamic canvas where each plotted point has the potential to reveal a novel material with optimized performance for batteries.
Translating the cryptic numbers that accompany each point on the diagram, such as '622' or '442', is essential for interpreting the material compositions. These ratios reflect the percentages of nickel, manganese, and cobalt, respectively. A '622' composition, for example, corresponds to a blend with 60% nickel, 20% manganese, and 20% cobalt. The choice of these proportions is not arbitrary. It is the result of meticulous research and experimentation aimed at achieving a balance between the electrochemical performance and the structural integrity of the cathode.
The ternary phase diagram also serves as a record of scientific research, with specific compositions marked to denote the materials that have been synthesized and characterized. Often, particular points of interest, such as those that offer a higher energy density or improved cycle life, are highlighted for further exploration. These points guide researchers in fine-tuning the ratios of nickel, manganese, and cobalt to meet the desired specifications of the battery.
As the needs of technology evolve, so too will the compositions plotted on these diagrams, leading us to new discoveries in the composition and capabilities of battery materials.
