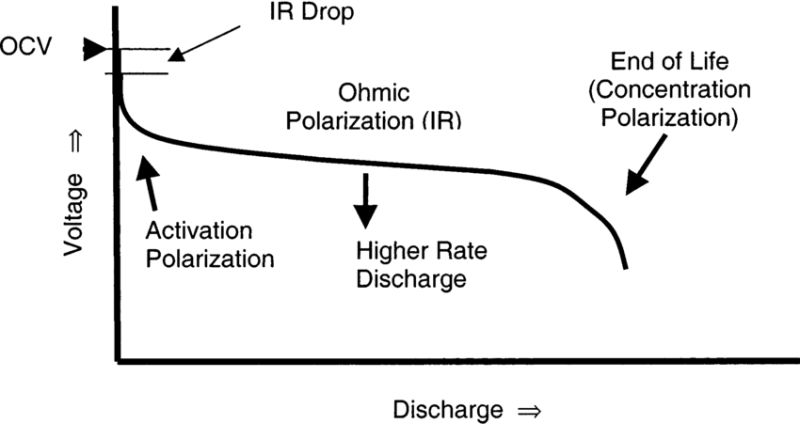

'Electrode polarization' in lithium-ion batteries is a complex interaction of electrochemical processes and material properties. It refers to the development of a potential difference between the electrode and the electrolyte during the charging & discharging cycles. This potential difference is not constant but varies depending on the state of charge, current density, and the physical and chemical properties of the electrode & electrolyte materials.
The primary cause of electrode polarization is the resistance encountered by li-ions as they migrate between the anode & cathode. This resistance can be broadly categorized into two types: ohmic resistance & mass transport resistance. Ohmic Resistance is the inherent resistance of the battery materials, including the electrodes, electrolyte, and separator. Ohmic resistance is often influenced by the conductivity of these materials.
Mass Transport Resistance is more complex and arises from the diffusion of lithium ions in the electrolyte & through the electrode materials. During periods of high charge or discharge rates, the rate of ion movement can lag behind the demand, leading to concentration gradients within the electrolyte & at the electrode interfaces. This phenomenon is known as concentration polarization.
Apart from these, there's a crucial aspect called activation polarization. It occurs due to the energy barrier associated with the intercalation (insertion) and de-intercalation (extraction) of lithium ions from the electrode materials. This barrier is a result of the chemical kinetics of the electrode reactions and can vary based on the electrode material's nature & surface properties.
Impact on Battery Performance:
Electrode polarization, primarily through its influence on internal resistance, directly impacts several key aspects of battery performance:
1) Efficiency: Increased polarization results in a larger energy loss during charging & discharging, reducing overall efficiency.
2) Capacity & Power Output: A high degree of polarization can limit the battery's ability to deliver high power output & reduce its effective capacity.
3) Degradation & Lifespan: Prolonged exposure to conditions that exacerbate polarization, like high charging rates or extreme temperatures, can accelerate the degradation of battery materials, shortening the battery's lifespan.
Measurement and Mitigation:
Electrochemical Impedance Spectroscopy (EIS) is a widely used technique for measuring the impedance characteristics of batteries, providing insights into the degree of polarization & its sources.
To mitigate polarization, a few opportunities include:
- Electrode & Electrolyte Material Optimization
- Electrode Design (structure)
- Operational Management (charging protocols)
