Writer's pictureBaba Mulani

Concept of Diffusion in Lithium-Ion Batteries

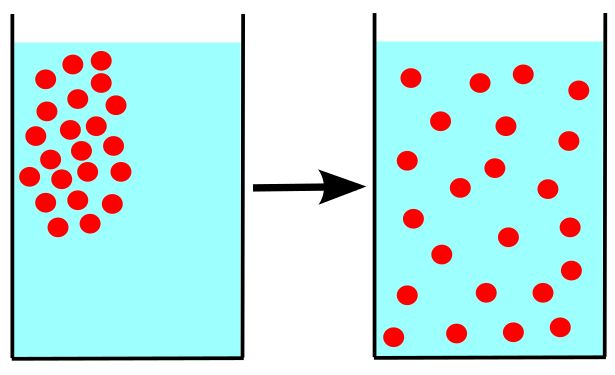

mage reference: JrPol, CC BY 3.0 <https://lnkd.in/gkBF4Tba>, via Wikimedia Commons

Imagine dropping a drop of ink into a glass of water. What happens next? The ink begins to spread and disperse throughout the water, gradually spreading into every corner of the glass. This simple phenomenon is known as diffusion.


'Diffusion' plays a pivotal role in the transport of lithium ions across the electrolyte within lithium-ion batteries, facilitating their movement between the cathode and anode electrodes.


What is the Diffusion Coefficient?

- The diffusion coefficient quantifies the rate at which particles, such as lithium ions, migrate through a material.

- It is a fundamental property that characterizes the mobility of ions within the battery's electrolyte and electrode materials.


Importance of Diffusion Coefficient in Lithium-ion Batteries:

- Controls the rate at which lithium ions move from the positive electrode (cathode) to the negative electrode (anode) during charging and vice versa during discharging.

- Determines the overall performance and efficiency of the battery.

- Influences key factors such as charge/discharge rates, energy density, power density, and cycle life.


Few Factors Affecting the Diffusion Coefficient:


Electrolyte Properties:

- Viscosity: Higher viscosity restricts ion movement, leading to slower diffusion.

- Ionic Conductivity: Higher conductivity facilitates faster ion migration.

- Solvent/Salt Composition: Different solvents and salts affect ion mobility differently.


Electrode Characteristics:

- Porosity and Tortuosity: Affect the path and accessibility for ions to move within the electrode structure.

- Surface Area: Greater surface area provides more contact points for ion interaction.


Measuring Diffusion Coefficient:

- Electrochemical Techniques: Methods like cyclic voltammetry and impedance spectroscopy can indirectly measure diffusion coefficients.

- Nuclear Magnetic Resonance (NMR): Provides direct insight into ion movement dynamics within the battery.


Enhancing Diffusion Coefficient:

- Electrolyte Optimization: Formulating electrolytes with higher conductivity and lower viscosity can improve ion mobility.

- Electrode Design: Manipulating electrode structure and composition to enhance porosity and reduce tortuosity.


Challenges:

- Non-uniform Distribution: Diffusion can be hindered by concentration gradients and side reactions, leading to uneven ion distribution.

- Interface Effects: The solid-electrolyte interface can influence ion diffusion near the electrode surface.

- Advanced Characterization Techniques: Developing more precise and efficient methods to measure diffusion coefficients.

- Material Innovations: Exploring new materials with enhanced diffusion properties to push the limits of battery performance.
